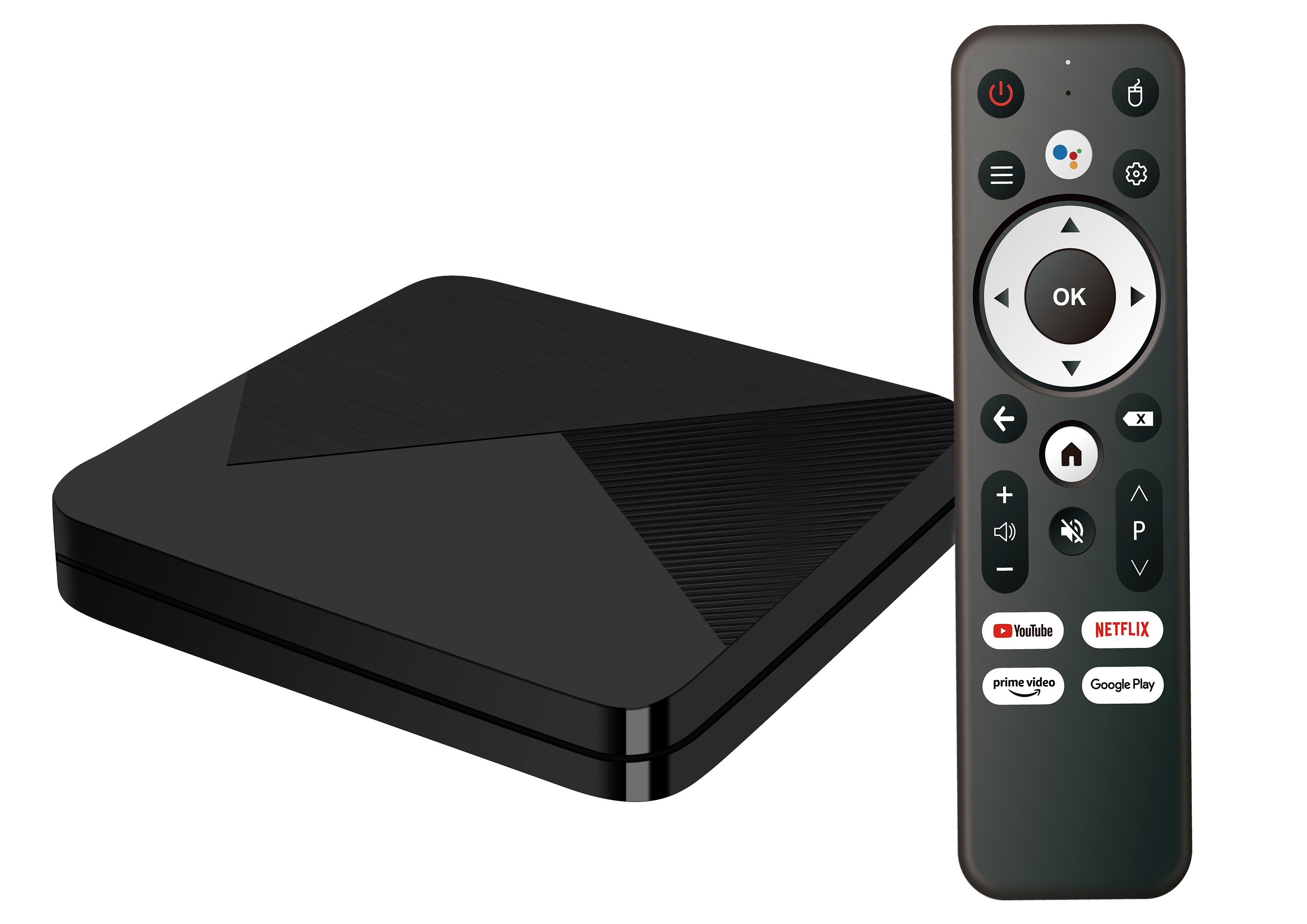

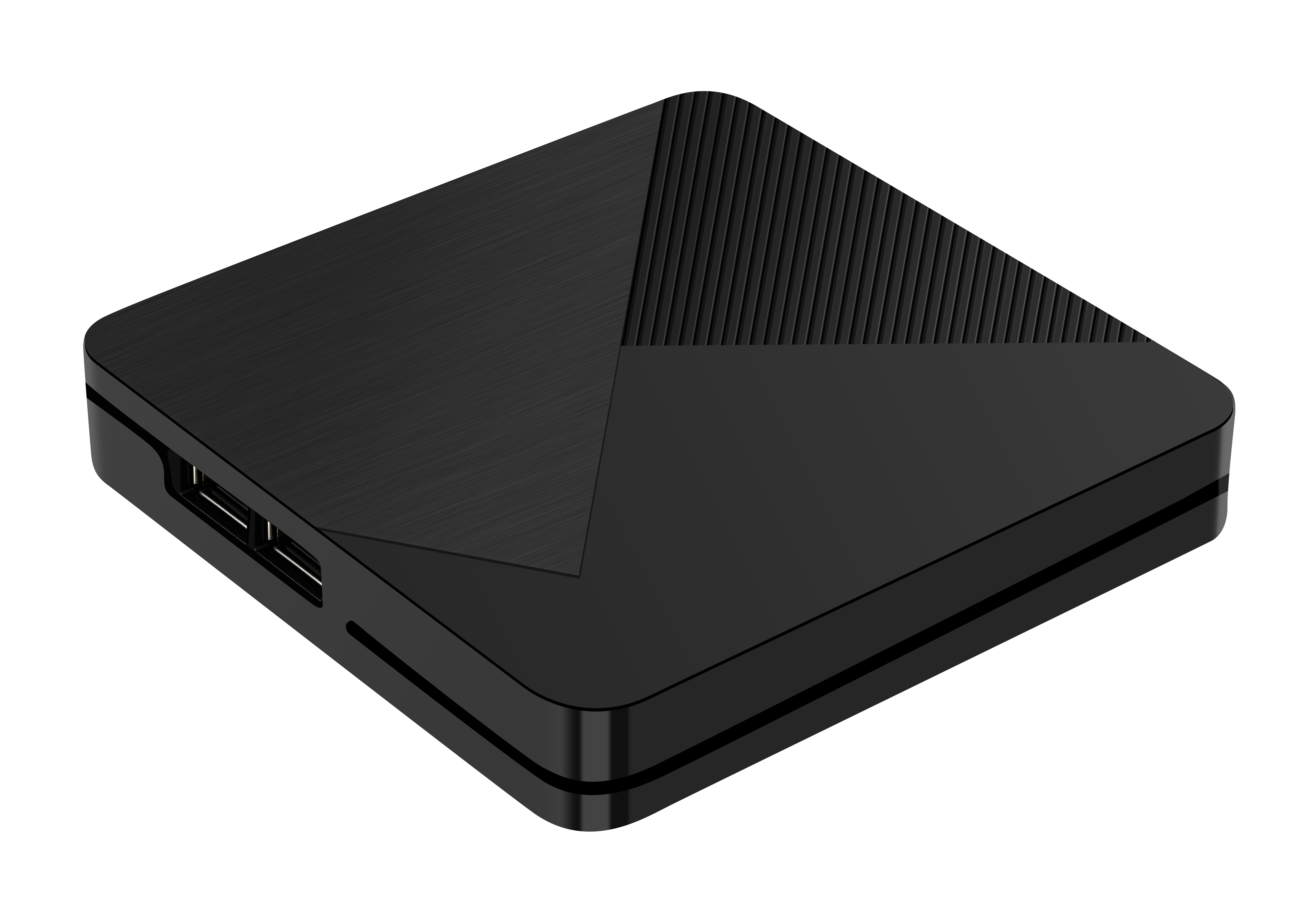

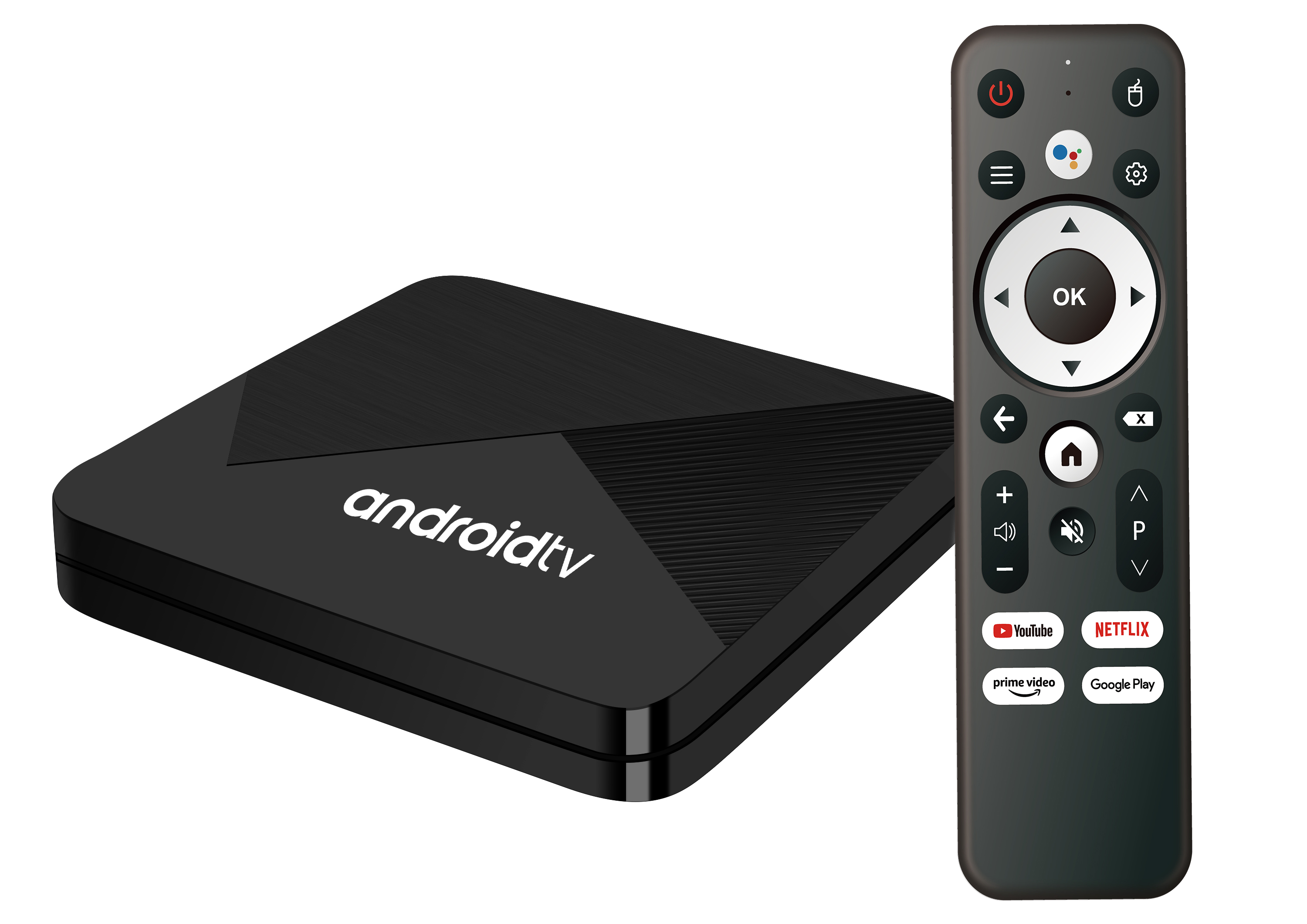

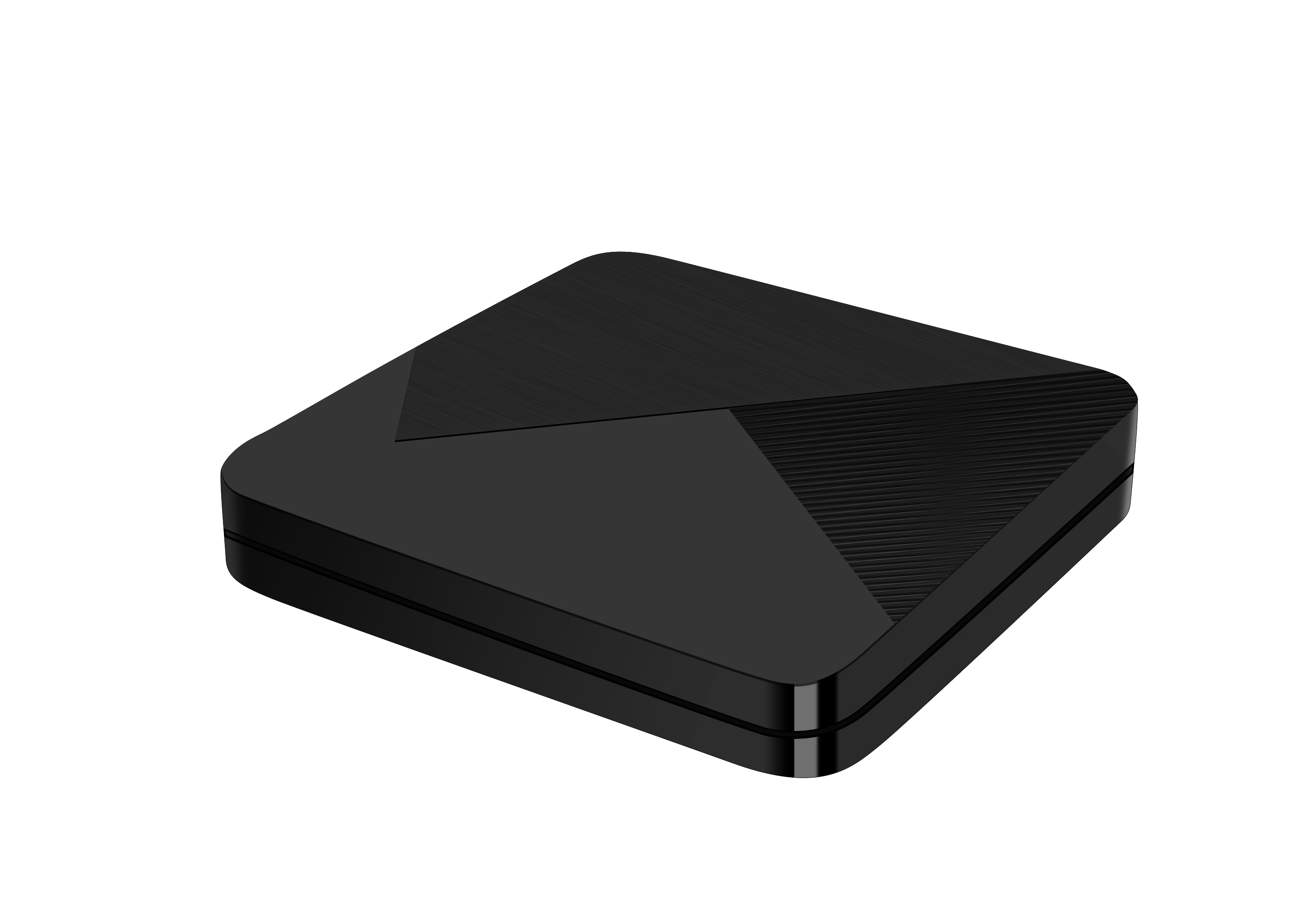

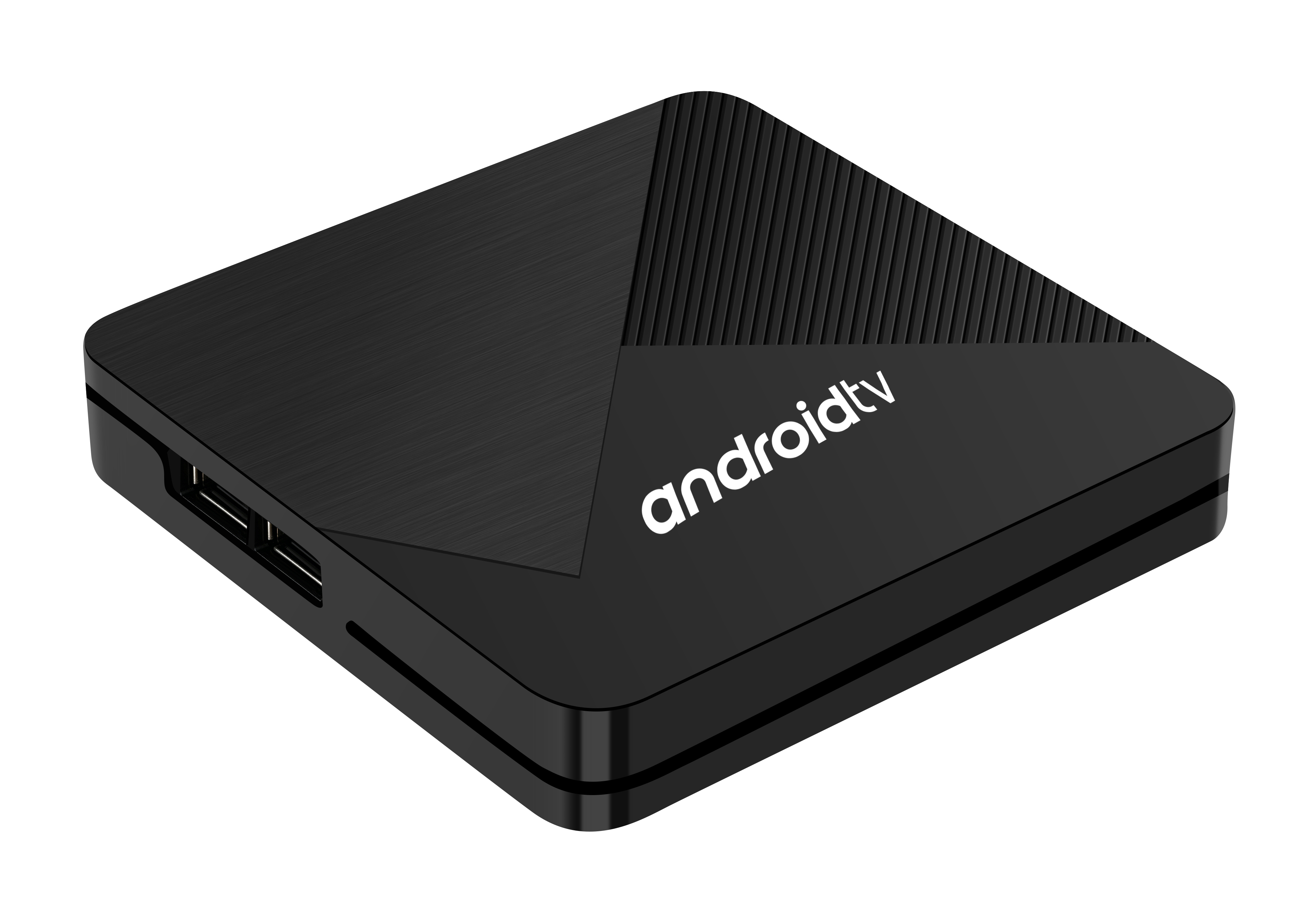

AndroidTV Quad Core A53 Allwinner H616 Android 10 TV Box Dual WIFI 2.4G&5G Bluetooth

AndroidTV Box Ram 1GB Rom 8GB, Ram 2GB Rom 16GB

Product Detail

Product Parameter

Download

1. Powered by Allwinner H616 quad-core A53 processor, this Android TV box delivers smooth running speed for video playback, app operation and multi-task switching without lagging.
2. Pre-installed official Android 10 system, compatible with massive streaming apps, games and media software, bringing a simple and user-friendly operating experience.
3. Built-in dual-band 2.4G & 5G WiFi module, supporting stable high-speed wireless connection to buffer-free 4K video streaming and eliminate network stuttering.
4. Integrated Bluetooth connectivity, easily pairs with wireless headphones, speakers, game controllers and other Bluetooth peripheral devices for flexible audio and gaming use.
5.Compact TV box design turns your ordinary TV into a smart media center, supporting ultra-high-definition video decoding to enjoy crisp, clear home theater entertainment.

1. Hardware Core

Item	Specification
CPU	Allwinner H616 Quad-Core ARM Cortex A53
GPU	G31, Supports OpenGL ES 3.2
Memory	DDR3: 1GB (Optional: 2GB)
Storage	eMMC Flash: 8GB (Optional: 16GB)
Wireless Module	IEEE 802.11 b/g/n Dual Band 2.4G & 5G WiFi + Bluetooth
Housing	Plastic Material, Black Color
Power Supply	DC 5V/2A; LED Indicator: Blue for Working, Red for Standby

2. I/O Interface

Port	Details
1× HDMI 2.0A	4K×2K UHD Video Output
1× AV OUT	480i / 576i Standard Definition Output
2× USB Ports	1× USB Host, 1× USB Device
1× IR Receiver	For Remote Control Connection
1× RJ45 Ethernet	Wired Network Interface
1× TF Card Slot	Supports 4GB / 8GB / 16GB / 32GB / 64GB TF Card

3. Software System

Item	Parameter
Operating System	Android 10
Supported Image Format	HD JPEG, BMP, GIF, PNG, TIF
Multi-Language	English, French, German, Spanish, Italian and other multilanguages

Max decoding resolution: 4K@60fps
Supported video formats: H.265 Main10 L5.1 (4K@60fps), VP9 Profile2 (4K@30fps), AVS2 JiZhun 10bit (4K@30fps), H.264 BP/MP/HP L4.2 (4K@30fps), H.263 BP (1080p@60fps), MPEG-4 SP/ASP L5, MPEG-2, MPEG-1, Xvid, Sorenson Spark, VP8, AVS/AVS+, WMV9/VC1, JPEG HFIF (up to 45MPPS)
H.264 Encoding: Max 4096×4096 (16MP), 1080p@60fps; Supports CBR & VBR bit rate (256kbit/s ~ 100Mbit/s); 8 ROI regions supported
JPEG snapshot: 1080p@60fps independent output

Audio Formats: MP3, AAC, WMA, RM, FLAC, Ogg
Digital Audio: SPDIF/IEC958 input & output, PCM input & output
Audio Channels: 2 DAC channels; 1 differential/single-end LINEOUT interface
Audio HUB: Built-in internal mixing function
I2S/PCM: 3 groups I2S (I2S0 for audio codec, I2S2 for Bluetooth, I2S3 for digital amplifier); Supports Left/Right/Standard I2S, PCM, TDM mode
Sampling Rate: I2S up to 8CH 32bit/192kHz; I2S/TDM up to 16CH 32bit/96kHz
OWA OUT: 16/20/24-bit input & output
DMIC: Integrated digital microphone, max 8 PDM digital mics supported

4. Application Functions

Category	Supported Features
Online Streaming	Browse all video websites; Compatible with Netflix, Hulu, Flixster, YouTube etc.
App Download	Free download apps from Android Market, Amazon App Store and more
Local Media Playback	Play media from External HDD, USB Flash Drive, TF Card
Extra Functions	Email, Office Suite; DLNA; 2.4G Wireless Mouse & Keyboard Support

5. Packaging & Dimension

6. Standard Accessories

1 × HDMI Cable

1 × User Manual

1 × Color Package Box

1 × DC Power Adapter
