4K VIDEO DECODING(4KVideo decoding)
Amlogic S905X5-M,Cortex-A55,Mali-G310 V2,6nm Chipset,AV1,
ANDROID 14(Android14)
Support Brand Custom Logo
Specification:

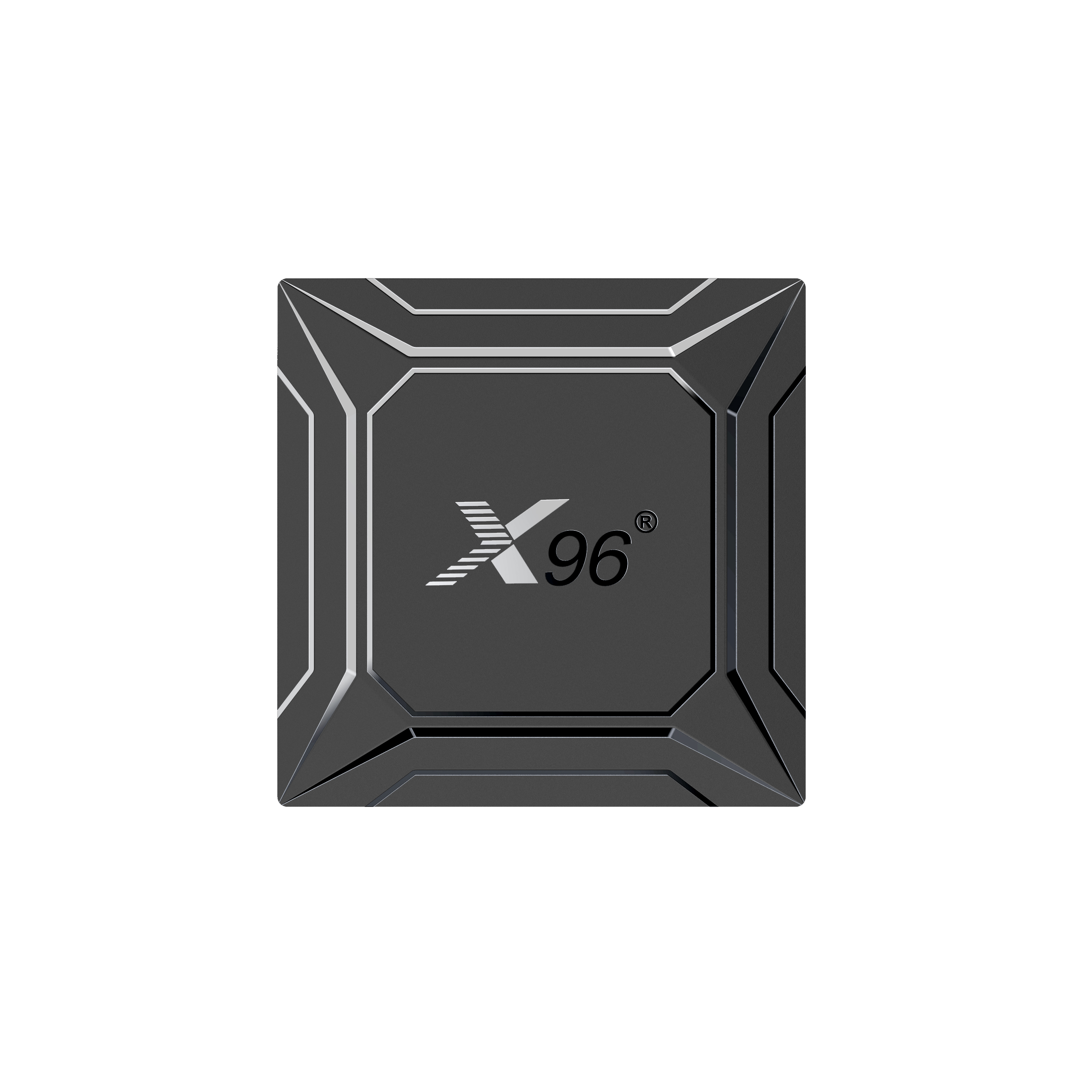

| Product Model | X96M200 | Project Status | M.P | |
| Basic parameters | ||||
| CPU | Chipset | Amlogic S905X5M | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | 4GB (2/4GB Optional) | ||
| ROM | Capacity | 64GB (16/32/64/128GB Optional) | ||
| External storage | USB Storage Devices | USB2.0 Support | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P 60fps | ||
| Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding | ||||
| Video/Picture Decoding | ||||
| VP9 Profile-2 up to 8Kx4K 24 fps | ||||
| H.265 HEVC MP-10 L5.1 up to 8Kx4K 24 fps | ||||
| AVS2-P2 Profile up to 8Kx4K 24 fps | ||||
| MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P 60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps | ||||
| MPEG-2 MP/HL up to 1080P 60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P 60fps (ISO-11172 | ||||
| RealVideo 8/9/10 up to 1080P 60fps | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918 | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||
| Image Engine | Supports HDR10, HDR10+ processing | |||
| Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 a/ b / g / n | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | one external antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 2.1a | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | *2 USB2.0 normal type | ||
| Ethernet | Ethernet | 1000M Ethernet | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||

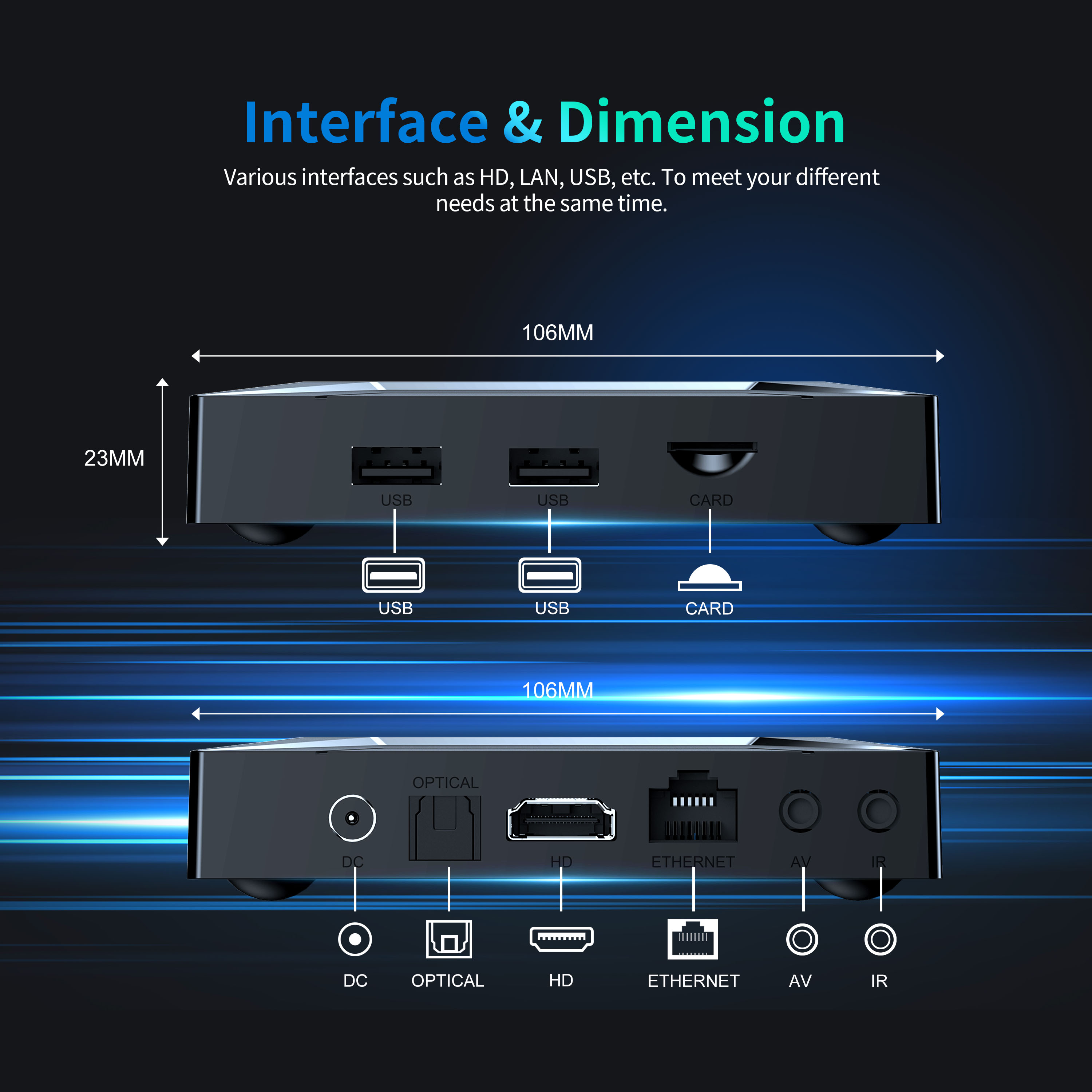

| Size | 106x106x23(mm) | |||
| Weight | 0.135Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm) | |
| Remote control | *1 | Qty Per Carton(pcs) | 20 | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.388Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.76Kg | |
